One Pig, Four Views: What X-ray, CT and MRI Can Show

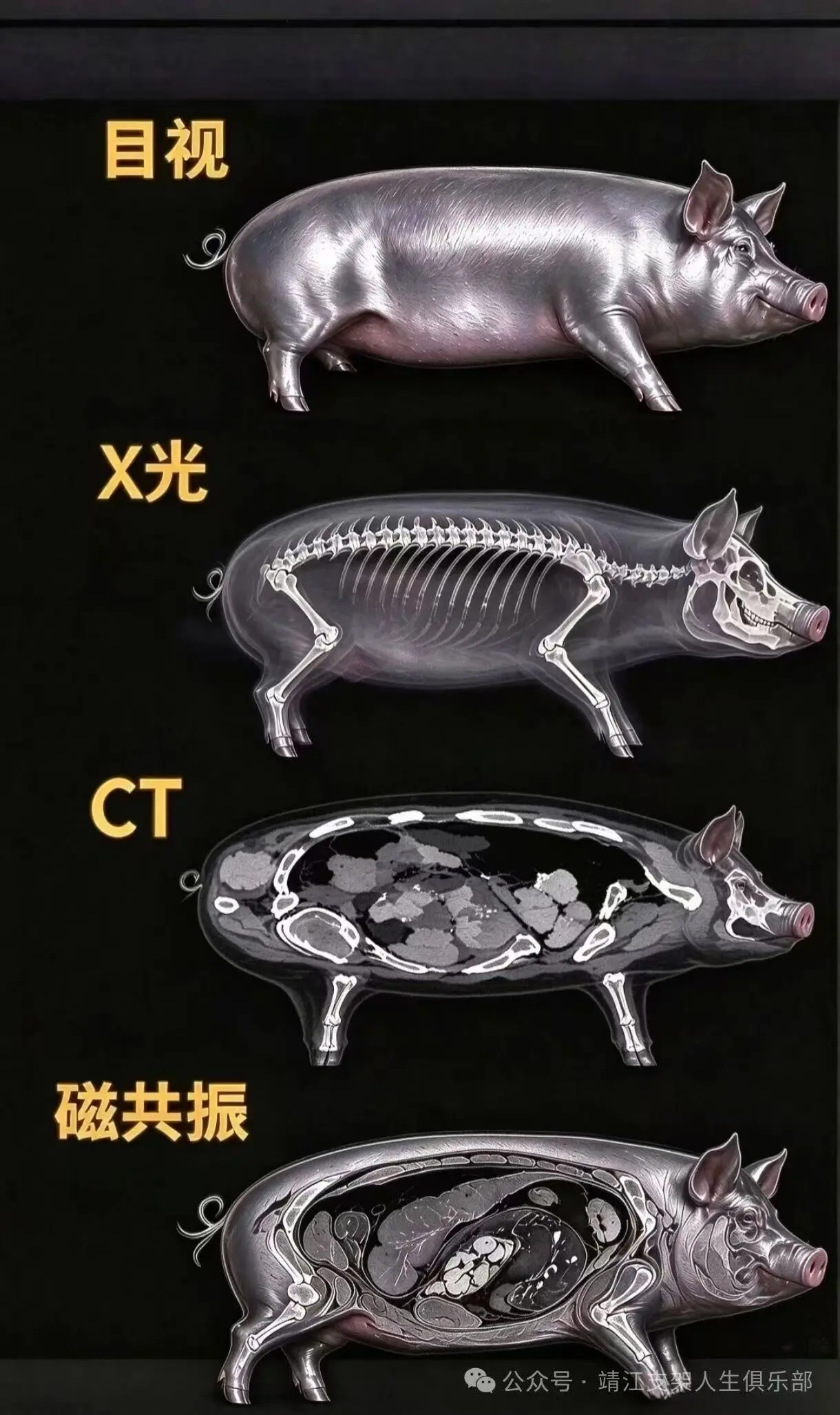

The same illustrated pig appears in four views: what we see with the naked eye, and what X-ray, CT and MRI might help us explore beneath the surface. It is a playful way to introduce medical imaging, but the four panels are artwork, not actual scans of one animal.

What changes from one view to the next?

• Naked-eye view: shows the outside—shape, skin and posture. It cannot directly show internal structures.
• X-ray: uses a small amount of ionizing radiation to make a two-dimensional projection. Dense bone often appears bright, while soft tissues overlap and may be harder to distinguish.
• CT (computed tomography): also uses X-rays, taken from many angles and reconstructed by a computer into cross-sectional images. This can reveal the position of bones, organs and other internal structures in much more detail than a single projection.
• MRI (magnetic resonance imaging): uses a strong magnetic field and radiofrequency signals rather than X-rays. It can provide detailed contrast between many soft tissues and does not use ionizing radiation.

The important limit of this picture

The CT and MRI panels show an artistic cutaway. A clinical scanner does not literally open a body or produce a universal view of everything inside. Image appearance depends on the body part, scan settings, viewing plane and any contrast material used. The illustration should not be interpreted as a radiograph, CT image or MRI result, nor as evidence of normal or abnormal anatomy.

Different scans answer different clinical questions. A clinician chooses an examination by weighing the information needed against factors such as radiation exposure, scan time, contrast-agent considerations and MRI safety for a person with an implant. Switching to a different scanner is not automatically better, and interpreting actual images requires a trained professional.

For educational purposes only, not a substitute for professional medical diagnosis. If you have a health concern or a question about an imaging result, consult your treating clinician or a qualified radiologist.

Image note: The customer supplied the four-panel artwork. Its original publisher watermark has been preserved. The Chinese labels translate to “naked-eye view,” “X-ray,” “CT” and “MRI.” The picture is a conceptual visual metaphor and is not patient or animal diagnostic data.
